Sieve Shaker TITAN 450

Data Sheet

Language:

Where to buy

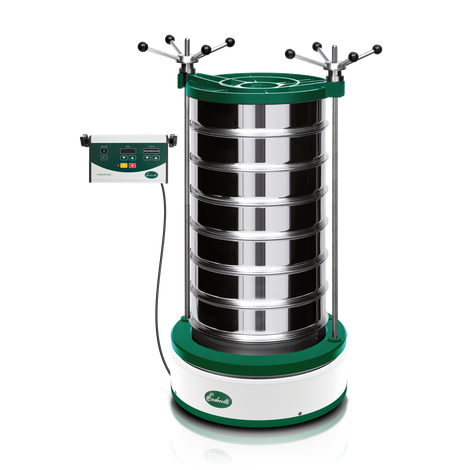

The name says it all: The new Titan 450 is Endecotts' most powerful sieve shaker! It is built for large sieve diameters and can take up to 7 x 450 mm diameter test sieves!

The Endecotts Titan 450 is a vibrating shaker that is used to carry out sieve tests in conjunction with sieve stacks for particle sizing of various material samples. It is based on an electromagnetic drive, with special carbon fibre springs that are set at a calculated angle to provide a horizontal twist, as well as a vertical movement to carry out efficient sieve tests.

The Titan 450 has a remote control unit that houses a digital controller to vary the vibration, process time and intermittent settings.

Product Video

Product Advantages

  • Electromagnetic drive for quiet and virtually maintenance free operation
  • Easily set to maximum efficiency
  • Digital controls for easy and reliable operation via external interface
  • Economical
  • No mechanical moving parts
  • Suitable for wet or dry sieving

The perfect addition to our Sieve Shakers: SieveWare

For even better evaluation results and effective handling.

  • Automatic registration, evaluation and administration of measurement data
  • Automatic detection and configuration of common analytical scales
  • Comprehensive data export

Technical Data

Range20 µm to 125 mm
Drive / sieving motionelectromagnetic 3D
Max. batch / feed capacity20 kg
Max. number of sieves7 full height 450 mm / 11 full height 300 mm
Amplitude0 - 2 mm
digital setting in 10 steps
Speed3,000 min-1 at 50 Hz
Time displaydigital, 00:10 - 99:50 min (external unit)
Suitable for dry sievingyes
Suitable for wet sievingyes
Sieve diameter250 / 300 / 315 / 350 / 400 / 450 mm / 12" / 18"
Max. height of sieve stackup to 830 mm
Clamping devicesturn and twist clamping system (included)
Modelfloor
Protection codeIP 54
Electrical supplydifferent voltages available
Power connection1- Phase
W x H x D606 x 230 mm
Net weight~ 140 kg
StandardsCE
